PX-5021

LEVEL, Bexco

0 offer available: $

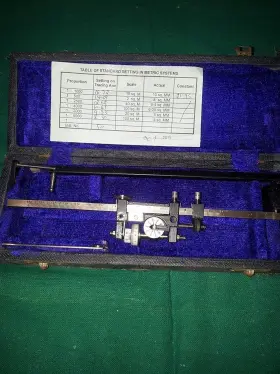

PX-5021 BEXCO Mechanical Planimeter Level Survey Civil

The Bexco PX-5021 Mechanical Planimeter is a versatile and precise surveying tool designed for civil engineering, land surveying, and architectural applications. This instrument is engineered to provide accurate area and length measurements for various types of surveys.

The Bexco PX-5021 features a robust metal body with a smooth matte finish, ensuring durability and resistance to wear and tear. The planimeter comes with a high-precision mechanical integrator that delivers reliable and consistent results. The large, easy-to-read dial makes it simple to monitor measurements in real time, while the adjustable tension clutch enables users to customize the resistance to suit their preferences.

The planimeter boasts an impressive measuring range of up to 36 inches (914.4 mm) in length and 360 square inches (2,265.1 sq cm) in area. Its fine adjustment knob allows for minute adjustments, ensuring the most accurate measurements possible. The Bexco PX-5021 also includes a built-in counter, which can record up to 10,000 revolutions, making it an ideal choice for large-scale projects.

This mechanical planimeter comes with an easy-to-use, ergonomic design. Its compact size and lightweight construction make it portable and convenient for use in the field or in the office. The Bexco PX-5021 also includes a protective hard case, ensuring safe transportation and storage.

The Bexco PX-5021 Mechanical Planimeter is an essential tool for civil engineers, land surveyors, architects, and other professionals who require accurate measurements for their projects. Its durable construction, precise measurements, and user-friendly design make it a valuable asset for any surveying or engineering team.

A Detailed Analysis of the Bexco PX-5021 Mechanical Planimeter for Land Surveying

The Bexco PX-5021 mechanical planimeter is a popular choice among land surveyors and civil engineers due to its robust design and accuracy in measuring areas and distances. In this analysis, we will discuss the key features, advantages, and disadvantages of this instrument.

Key Features:

1. Mechanical design with a heavy-duty metal body

2. Adjustable micrometer screw for precise measurements

3. Large, easy-to-read dial

4. Accuracy: /- 1/1000 inch or /- 0.025mm

5. Interchangeable roller tips for various surfaces

Advantages:

1. Durable and long-lasting: The heavy-duty metal body ensures the instrument can withstand rough handling and harsh environments.

2. High precision: The adjustable micrometer screw and large, easy-to-read dial enable accurate measurements.

3. Versatile: Interchangeable roller tips cater to different surfaces, increasing the instrument's usability.

4. Cost-effective: Mechanical planimeters, like the Bexco PX-5021, are generally more affordable than their electronic counterparts.

Disadvantages:

1. Manual operation: Measuring distances and areas requires manual input, which can be time-consuming for large projects.

2. Limited functionality: Compared to electronic planimeters, mechanical planimeters do not offer advanced features like digital displays, automatic distance measurement, or data storage.

3. Requires maintenance: Proper care and maintenance are required to ensure the instrument maintains its accuracy and functionality.

Conclusion:

The Bexco PX-5021 mechanical planimeter is an excellent choice for land surveyors and civil engineers who require a cost-effective, durable, and accurate instrument for measuring areas and distances. While it may not offer the advanced features of electronic planimeters, its simplicity and reliability make it an essential tool for many professionals in the field.

Recommendation:

If you are looking for a dependable, cost-effective, and accurate instrument for measuring areas and distances in land surveying or civil engineering applications, the Bexco PX-5021 mechanical planimeter is an excellent option. It is well-suited for smaller projects and can serve as a reliable backup for electronic planimeters or total stations. However, for larger projects or applications requiring advanced features, an electronic planimeter may be a better choice.

Details:

Jacob ambler, professor of mathematics at the university scarfing Hansen in Switzerland developed this instrument 1854. Engineers and cartographers normally use planimeter to find the area of an irregular shape, such as a city. Mechanical planimeter level and survey equipment civil instrument, medical researchers also used this small instrument to measure biologic phenomena. As the region is traced, a small wheel rotates against paper, recording area on dial.

It consists of two arms: one affixed to the page using a pin, other containing stylus used trace around unknown area.
